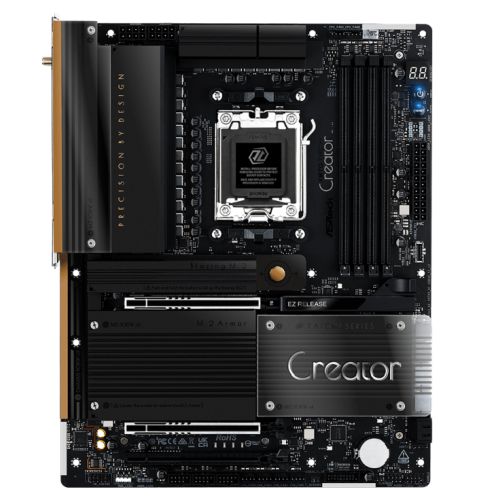

Asrock X870 TAICHI CREATOR, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 10G & 5G LAN, 4x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory
  Supports XMP and EXPO memory modules”
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x USB4 (40Gbps) support USB Type-C display outputs
• PCI/PCI Express: 2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)
  1 x PCIe 3.0 x16 (supports x4 mode)
  *specifications may vary between C{PU types
• Storage: 4 x SATA III
  4 x M.2

  M.2_1 (2280) – PCIe 5.0 x4
  M.2_2 (2280) – PCIe 5.0 x4
  M.2_3 (2280) – PCIe 4.0 x4
  M.2_4 (2280) – PCIe 3.0 x4

• RAID: “Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices”
• Wireless: 802.11be 2×2 Wi-Fi 7 Module
  Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  Supports 2.4GHz/5GHz/6GHz frequency band
  Supports 160MHz channel bandwidth with 6GHz frequency band
  1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth 5.4
  Supports MU-MIMO
• LAN: 10GB LAN & 5GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• USB Ports Supported: Rear:
  2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)
  2 x USB 10Gbps Type-A
  6 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  4 x USB 5Gbps Type-A
  6 x USB 2.0

• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x Optical SPDIF Out
  2 x USB4 Type-C (40 Gb/s)
  2 x USB 3.2 Gen2 Type-A
  6 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  2 x RJ-45 LAN
  1 x Clear CMOS Button
  1 x BIOS Flashback Button
  1 x Line Out Jack
  1 x Microphone Input Jack
• Internal I/O Connectors: 1 x Thermistor Cable
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  2 x CPU Fan
  4 x Chassis Fan
  1 x AIO Pump Fan
  1 x 24 pin ATX
  2 x 8 pin 12V
  1 x Front Panel Audio
  3 x USB 2.0
  2 x USB 3.2 Gen1
• .: 1 x Front Panel Type C USB 3.2 Gen2x2
  1 x Dr. Debug with LED
  1 x Power Button with LED
  1 x Reset Button with LED
• Accessories: 4 x SATA Data Cables
  1 x ASRock WiFi 2.4/5/6 GHz Antenna
  1 x ARGB Splitter Cable
  1 x Thermistor Cable
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
