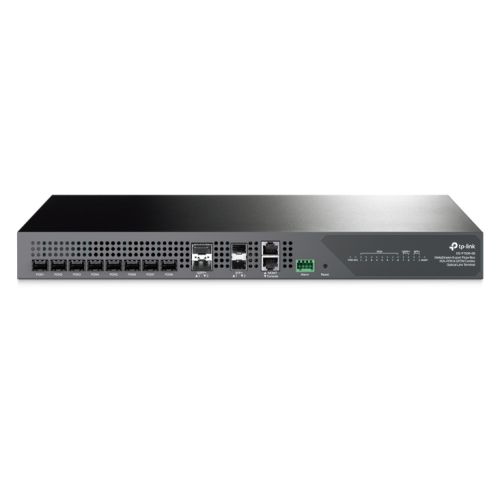

TP-LINK Aginet (DS-P7500-08) DeltaStream 8-port Pizza-box XGS-PON & GPON Combo Optical Line Terminal, 8 PON Ports, Dual PSUs, Centralized Management

Description

Specification

• Interface(s): 8 x XGS-PON & GPON Combo Ports (SFP+)
  2 x 40G QSFP+ Ports
  2 x 10G SFP+ Ports
  1 x RJ45 Management Port
  1 x RJ45 Console Port
  1 x Alarm Port
• Button: Reset Button
• Power Supply: “Dual Power Supplies: 2 AC, 2 DC or AC+DC,
  AC: 100V~240V, 50/60Hz
  DC: -38.4V~-72V
  Power Consumption: Max. 109.2W”
• Data Rates: “GPON:
  Downstream: 2.5 Gbps, Upstream: 1.25 Gbps

  XGS-PON:
  Downstream: 9.953 Gbps, Upstream: 9.953 Gbps”

• Wavelength: “GPON:
  Tx: 1577 nm
  Rx: 1270 nm

  XGS-PON:
  Downstream: 9.953 Gbps, Upstream: 9.953 Gbps”

• Distance: 20 km
• Max. Splitting Ratio: “1:128 for GPON, 1:256 for XGS-PON”
• DHCP: DHCP Server
  DHCP Relay
• Multi-Service: Multi-Service Traffic Identify and Rate Limit
• QoS: IEEE 802.1p/DSCP QoS
  Voice VLAN
  Auto VoIP
• Routing: Static Routing
• Mulitcast: IGMP Snooping
  MLD Snooping
• Security: ACL
  802.1x Authentication
  ARP Inspection
  IP Source Guard

  ONU Security:
  Rouge ONU Detection and Isolation

• Management: “OMCI:
  Standard OMCI Management Supported

  Centralized Management:
  Large-Scale Devices Management
  OLT Batch Configure, Upgrade, Reboot
  Multi-Site Management
  Intelligent Network Monitoring
  Real-time Network Overview”

• Dimensions: 440 x 330 x 44 mm
• Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
  Storage Temperature: -40°C~70°C(-40°F~158°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: “Optical Line Terminal DS-P7500-8
  AC Power Cord
  Console Cable
  Mouting Brackets, Screws and Rubber Feet
  Installation Guide”
• Package Weight: 8.4900 kg
• Warranty: 3 Years
