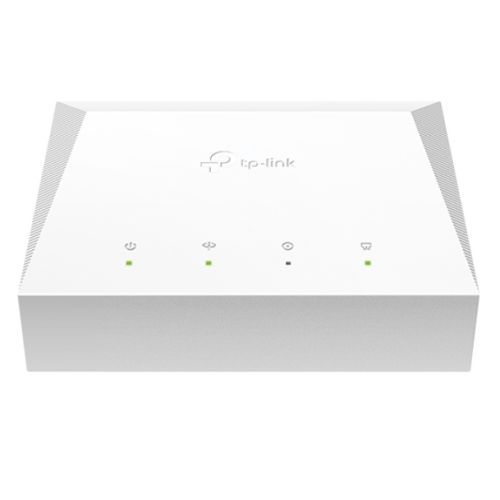

TP-LINK Aginet (XZ000-G7) 1-Port Gigabit XPON Terminal, Gigabit Internet Access, EPON + GPON Dual Mode, Remote Management
TP-LINK Aginet (XZ000-G7) 1-Port Gigabit XPON Terminal, Gigabit Internet Access, EPON + GPON Dual Mode, Remote Management

TP-LINK Aginet (XZ000-G7) 1-Port Gigabit XPON Terminal, Gigabit Internet Access, EPON + GPON Dual Mode, Remote Management

£14.88 inc. VAT

Product details

Description

Specification

  • Interface(s): 1 x PON Port
    1 x 10/100/1000 Mbps RJ45 Port
  • Button: Reset Button
  • Power Supply: 9VDC/0.6A
  • IEEE Standards: “IEEE 802.3, 802.3u, 802.1p, 802.1Q”
  • Data Rates: “Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
    Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*

    *Actual network speed may be limited by the rate of the products Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

    “

  • Wavelength: Upstream: 1310 nm
    Downstream: 1490 nm
  • Distance: 0-20 km Max
  • GPON Standards: “ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4”
  • Optical Module: Class B+
  • Receiver: Super-TIA
  • Transmitter: DFB Laser
  • VLAN: “802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect”
  • Security: “AES Encryption, Packet Filter based on VLAN”
  • Management: “Local management: WebGUI, Telnet
    Remote management: OMCI”
  • IGMP: IGMP v1/v2/v3
  • Advanced Features: Upstream and Downstream FEC
    Dynamic Bandwidth Allocation(DBA) support NSR/SR
    Up to 16 T-CONTs and 256 GEM Ports
    Optical power detection
    Dying Gasp
    Terminal Silent mechanism
  • Dimensions: 95.0 x 75.0 x 29.3 mm
  • Environment: Operating Temperature: 0°C–40°C (32°F–104°F)
    Storage Temperature: -40°C–60°C (-40°F–140°F)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
  • Package Contents: XZ000-G7
    Power Adapter
  • Package Weight: 0.2100 kg
  • Warranty: 3 Years

Sorry, we sold out of this product. Please check back again soon!

SKU: TER-1TPXPON-GB Category: Tag:

Have Any Questions?

Our experts are ready to help you!

Chat now

Description




1-Port Gigabit XPON Terminal

  • Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
  • XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
  • Durability: Intelligent power-saving method
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.



High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of up to 2.488 Gbps downstream, 1.244 Gbps upstream.*

Make Fiber-to-the-Home Yours
TP-Link’s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.

Gigabit Internet Access
One PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.




Additional information

Weight 0.2100 kg
