Gigabyte 750W 80+ Bronze Certified Power Supply, Silent 120mm FDB Fan, Soft-Textured Cables, Single +12V Rail, Advanced Protection, 3-Year Warranty

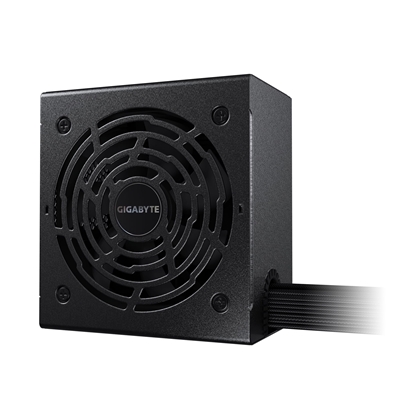

The Gigabyte GP-P750BS-UK is a 750W power supply unit (PSU) designed for high-performance gaming and workstation setups. It features 80 PLUS Bronze certification, ensuring energy efficiency and reliable power delivery. With a single +12V rail, it provides stable voltage output, making it ideal for demanding applications. The 120mm Fluid Dynamic Bearing (FDB) fan ensures silent operation while maintaining optimal cooling.

Model:
GP-P750BS-UK

Dimensions
150 x 140 x 86 mm

Type:
ATX 12V

PFC:
Active PFC (>0.9 typical)

Input Voltage:
200-240V AC

Input Current:
6A

Input Frequency:
50-60Hz

Output Capacity:
750W

Efficiency:
80 PLUS Bronze (88% at typical load)

MTBF: >
100,000 hours

Fan Type:
120mm Fluid Dynamic Bearing (FDB)

Protection Features:
OVP, OPP, SCP, UVP, OCP, OTP

Power Good Signal:
100-150ms

Hold Up Time:
>16ms

Cable Type:
Soft-textured embossed cables

Connectors:
ATX/MB: 20+4 Pin x1 (600mm)
CPU/EPS: 4+4 Pin x2 (600mm + 150mm)
PCI-E: 6+2 Pin x7 (500mm + 150mm x2)
SATA: x4 (500mm + 150mm + 150mm + 150mm)
SATA + Peripheral: x3 + x1 (500mm + 150mm + 150mm + 150mm)

Warranty:
3 years
