AMD Ryzen 7 5700G 8 Core AM4 Processor, 16 Threads, 3.9GHz up to (4.6GHz Boost), 16GB DDR4 RAM, 1TB Kingston NVMe M.2, WiFi 6 + BT, Deep Cool Micro Chassis – Pre-Built PC

WINDOWS 11 READY

Ryzen 5000G Series represent AMD’s flagship family of desktop processors based on Zen3 architecture, with Integrated Graphics.
The Ryzen 5000G Series desktop processors are designed for mainstream gamers and creators looking for the best of both worlds. Uncompromised performance & power with Integrated Graphics capable of 1080P gaming.
These premium offerings will be offered alongside continued shipments of AMD Ryzen 4000 Series processors, enabling AMD to address a wide range of price points for PC buyers and builders.

THE FASTEST IN THE GAME
AMD Ryzen 5000 G-Series processors with built-in Radeon graphics dominate the battlefield.

MAXIMUM COOLING, TINY FOOTPRINT
Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.

Product Description
AMD Ryzen 7 5700G 8 Core AM4 Processor, 16 Threads, 3.9GHz up to (4.6GHz Boost), 16GB DDR4 RAM, 1TB Kingston NVMe M.2, WiFi 6 + BT, Deep Cool Micro Chassis – Pre-Built PC

Processor
AMD Ryzen 7 5700G 3.8GHz 8 Core AM4 Processor, 16 Threads, 3.9GHz up to 4.6GHz Boost, 20MB Cache, 65W,with Wraith Stealth Cooler, Radeon Graphics

Processor Cores
8

Processor Threads
16

Core Clock Speed
3.80GHz

Core Boost Speed
4.60GHz

Memory
PNY Performance MD8GSD43200-SI 8GB (1x 8GB) DIMM System Memory, 3200MHz, DDR4, CL22

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Graphics Model: Radeon Graphics
Graphics Core Count: 6
Graphics Frequency: 1700 MHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
N/A

Networking
Mercusys MA30E AC1200 WiFi Bluetooth PCIe Adapter
Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Wider Signal Coverage — Two high-performance antennas
Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage
MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Backward Compatibility — Full support for 802.11ac/a/b/g/n standards

Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 5
4 Pin Peripheral x 1

Motherboard
ASRock A520M-HVS Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN

Expansion Slot
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCI Express 3.0 x1 Slot

Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Rear I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O
1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Chassis

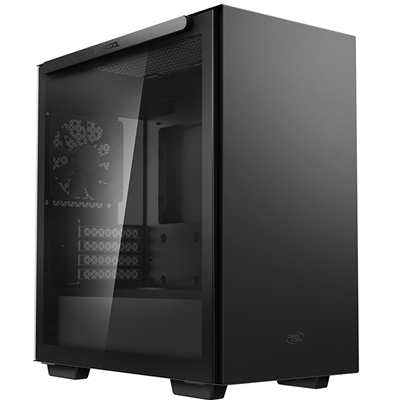

DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Tempered Glass Side Window Panel, Micro ATX

Drive Bays
Internal 3.5″: 2
Internal 2.5″: 2

IO Ports
2 x USB 3.0
1 x Audio

Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Dimensions
400mm x 225mm x 431mm

Package Weight
9.25 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
