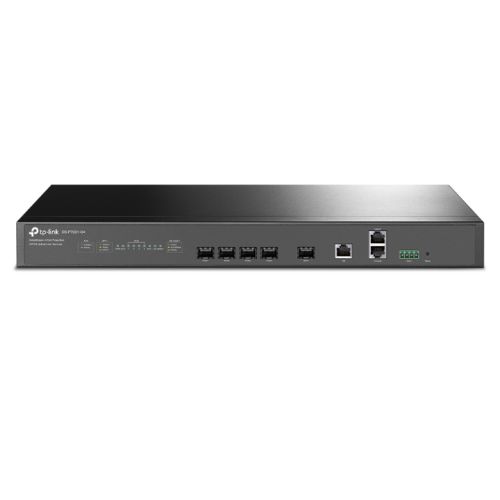

TP-LINK Aginet (DS-P7001-04) DeltaStream 4-port Pizza-box GPON Optical Line Terminal, 4 GPON Ports, Dual Redundant PSUs, Centralized Management
TP-LINK Aginet (DS-P7001-04) DeltaStream 4-port Pizza-box GPON Optical Line Terminal, 4 GPON Ports, Dual Redundant PSUs, Centralized Management

TP-LINK Aginet (DS-P7001-04) DeltaStream 4-port Pizza-box GPON Optical Line Terminal, 4 GPON Ports, Dual Redundant PSUs, Centralized Management

£818.77 inc. VAT

Product details

Description

Specification

  • Interface(s): 4 x 2.5G PON Ports
    1 x 10 Gbps SFP+ Uplink Ports
    1 x 10/100/1000 Mbps RJ45 Uplink Port
    1 x RJ45 Console Port
    1 x RJ45 MGMT Port
    1 x Alarm Port (Reserved)
  • Button: Reset Button
  • Power Supply: “Dual Power Supplies
    AC: 100V~240V, 50/60Hz
    DC: -38.4V~-72V
    Power Consumption: Max. 58W”
  • Data Rates: Downstream: 2.5 Gbps
    Upstream: 1.25 Gbps
  • Wavelength: Tx: 1490 nm
    Rx: 1310 nm
  • Fiber Type: 9/125um SMF (Single Mode Fiber)
  • Distance: 20 km
  • Max. Splitting Ratio: 1:128
  • DHCP: DHCP Server
    DHCP Relay
  • Multi-Service: Multi-Service Traffic Identify and Rate Limit
  • QoS: IEEE 802.1p/DSCP QoS
    Voice VLAN
    Auto VoIP
  • Routing: Static Routing
  • Mulitcast: IGMP Snooping
    MLD Snooping
  • Security: ACL
    802.1x Authentication
    ARP Inspection
    IP Source Guard

    ONU Security:
    Rouge ONU Detection and Isolation
    Uplink and Downlink Data Encryption

  • Management: “OMCI:
    Standard OMCI Management Supported

    Centralized Management:
    Large-Scale Devices Management
    OLT Batch Configure, Upgrade, Reboot
    Multi-Site Management
    Intelligent Network Monitoring
    Real-time Network Overview”

  • Dimensions: 440 x 180 x 44 mm
  • Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
    Storage Temperature: -40°C~70°C(-40°F~158°F)
  • Package Contents: “OLT Device
    Power Cord and Console Cable
    Installation Guide
    Mounting Brackets, Screws and Rubber Feet”
  • Package Weight: 3.2000 kg
  • Warranty: 3 Years

Sorry, we sold out of this product. Please check back again soon!

SKU: TER-4TPDELTAGPON Category: Tag:

Have Any Questions?

Our experts are ready to help you!

Chat now

Description

DeltaStream 4-port Pizza-box GPON Optical Line Terminal

  • 4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
  • High-Speed Uplink Ports: Provides 1x 10GE SFP+ port and 1x gigabit uplink port.
  • Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
  • Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
  • Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
  • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.





Free Centralized Management
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.

Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

Constant Reliability Through Redundant Dual Power Supplies
Dual built-in AC and DC power supplies ensures carrier-class reliability.

AC input: 100V~240V 50/60Hz
DC input: 38.4V~72V



Additional information

Weight 3.2000 kg
