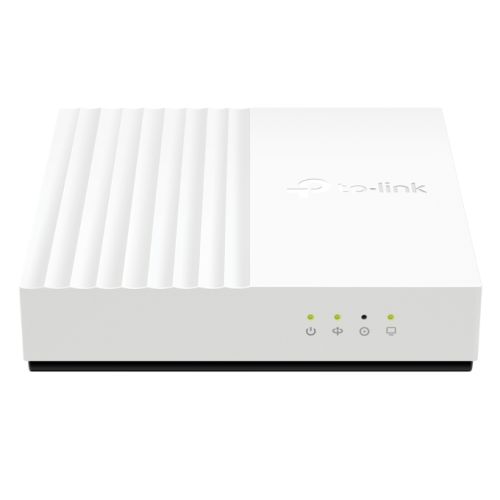

TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management

Description

Specification

• Interface(s): 1 x XGS-PON Port
  1 x 10G RJ45 Port
• Button: Power On/Off Button
  Reset Button
• Power Supply: 12V/1A
• IEEE Standards: “IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
  IEEE 802.3, 802.3.u, 802.3ab, 802.3x”
• Data Rates: “Downstream Speeds: 10 Gbps*
  Upstream Speeds: 10 Gbps*

  *Actual network speed may be limited by the rate of the products Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

  “

• Wavelength: Upstream: 1270 nm
  Downstream: 1577 nm
• Distance: 0-20 km Max
• GPON Standards: “ITU-T G.9907.1, ITU-T G.988”
• Optical Module: Class E1
• Receiver: Super-TIA
• Transmitter: DFB laser
• VLAN: “802.1Q tag VLAN, Q in Q VLAN
  VLAN transparent mode/VLAN translation
  mode/VLAN trunk mode
  Authentication based on SN and password”
• Security: AES encryption
  Packet filter based on VLAN
• Management: “Local management: WebGUI, Telnet
  Remote management: OMCI”
• IGMP: IGMP v1/v2/v3
• Advanced Features: Upstream and Downstream FEC
  Dynamic Bandwidth Allocation (DBA) support NSR/SR
  Up to 32 T-CONTs and 256 GEM ports
  Optical power detection
  Dying Gasp
  Terminal Silent mechanism
  802.3az EEE energy conservation
  Schedule Reboot
  LED Schedule
• Dimensions: 120 x 120 x 27.85 mm
• Environment: Operating Temperature: 0°C–40°C (32°F–104°F)
  Storage Temperature: -40°C–60°C (-40°F–140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: XGS-PON Terminal
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
• Package Weight: 0.2900 kg
• Warranty: 3 Years
