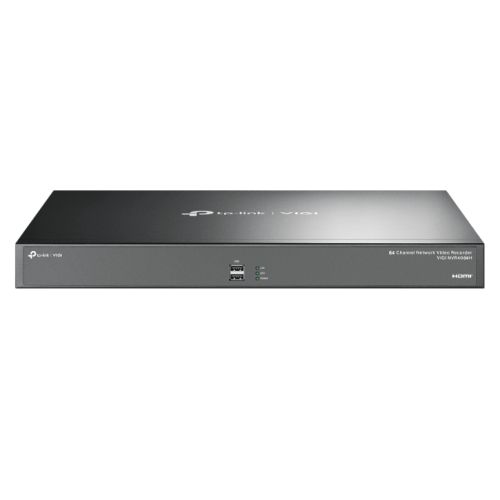

TP-LINK (VIGI NVR4064H) 64-Channel NVR, No HDD (Max 64TB), 64-Channel Live View, 4K HDMI Video Output, Remote Monitoring, H.265+
TP-LINK (VIGI NVR4064H) 64-Channel NVR, No HDD (Max 64TB), 64-Channel Live View, 4K HDMI Video Output, Remote Monitoring, H.265+

TP-LINK (VIGI NVR4064H) 64-Channel NVR, No HDD (Max 64TB), 64-Channel Live View, 4K HDMI Video Output, Remote Monitoring, H.265+

£1,016.76 inc. VAT

Product details

Description

Specification

  • Access Camera Number: 64
  • Incoming/Outgoing Bandwidth: Incoming Bandwidth:
    Default: 260Mbps
    Extended Bandwidth Mode: 320Mbps

    Outgoing Bandwidth:
    Default: 180Mbps
    Extended Bandwidth Mode: 320Mbps

  • Network: “Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

    Mobile Phone Access: Android, iOS

    Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

    Interoperability: ONVIF Profile S, CGI

    “

  • Interface(s): “2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
    2 x Front USB 2.0, 1 x Rear USB 3.0
    Audio Interface: 1-ch RCA Input; 1-ch RCA Output
    Alarm In/Out: 16/4
    1 x Serial RS232
    Power: 1 x AC Jack
    1 x eSATA
    2 x HDMI
    1 x VGA”
  • Video Input/Output: IP Video Input:
    64-Channel

    Video Output:
    HDMI1/HDMI2 Independent output
    HDMI1/VGA Independent output

  • Decoding: “Audio Compression:
    G.711A/G.711U/G.726

    Video Compression:
    H.265+/H.265/ H.264+/H.264

    Record Resolution:
    8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

    Synchronous Playback:
    16-Channel

    Capability:
    25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1
    30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP

    “

  • HDD: 4 x SATA Interfaces
    Up to 16 TB Capacity for Each HDD
  • PoE: –
  • Power Supply: “100-240 VAC, 50 to 60Hz, 1.5A”
  • Power Consumption: 6.95 W (Without Disk)
    48.38 W (With Disk)
  • Record Management: “Record Mode:
    Manual Recording, Scheduling Recording, Motion Detection Recording

    Playback Mode:
    Instant Playback, Regular Playback, Tag Playback, Event Playback

    Backup Mode:
    Regular Backup, Video Clip Backup

    Playback Function:
    Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

    “

  • Alarm: “General Alarm:
    Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame

    Anomaly Alarm:
    Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

    Alarm Linkage:
    Recording, White Light Alarm, Buzzer, Log, Audible Alarm

    “

  • Weight/Dimensions: 4.0 kg
    (WxDxH) 440 x 330 x 44 mm
  • Environment : Storage Temperature: -40–70 °C
    Storage Humidity: 10%~90% RH Non-Condensing
    Working Temperature: NVR: -10–55 °C
    Working Humidity: 10%~90% RH Non-Condensing
  • Package Contents: VIGI Network Video Recorder
    Mouse
    Installation Guide
    Power Cord
    HDD Power Cables
    HDD Data Cables
    Terminal Blocks
    Mounting Brackets
    Screws
    Rubber Feet
  • Additional Features: See Overview
  • Package Weight: 5.6500 kg
  • Warranty: 5 Years

Sorry, we sold out of this product. Please check back again soon!

SKU: VID-VIGITPNVR4064H Category: Tag:

Have Any Questions?

Our experts are ready to help you!

Chat now

Description

VIGI 64 Channel Network Video Recorder

  • 64-Channel Live View and 4K HDMI Video Output
  • Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
  • 16-Channel Synchronous Playback
  • 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
  • 4× SATA Interfaces and 1 Up to 16 TB
  • H.265+ Compression Technology
  • 2 HDMI and 1 VGA Video Output
  • Remote Monitoring




64-Channel Live View
Ensure a real-time display of every monitored area on one screen and take everything under your control.




4K Video Output
Show more details with up to 8MP resolution for one channel and 16-ch@2MP/ 8-ch@4MP decoding capacity in total for all channels



Mass Storage
4 SATA interfaces (up to 16TB capability per HDD) ensure to store and secure your data for quick, convenient access.




Easy Management
Seamlessly manage the NVR and connected cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. Customize the management systems to suit your specific needs.



Smart Search by Motion and Object
Efficiently search out and review certain video clips by motion type, characteristics of person/vehicle, tag, and more.


Additional information

Weight 5.6500 kg
