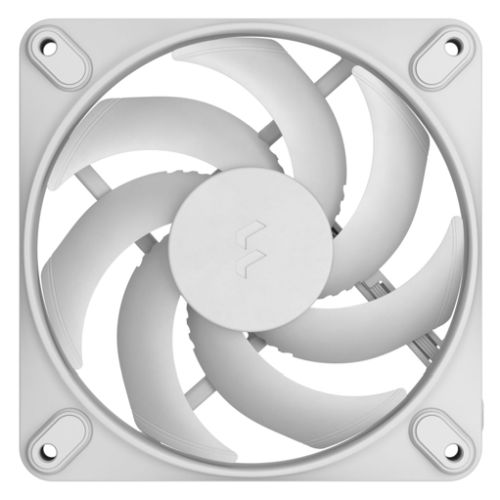

Fractal Design Momentum 12 12cm PWM Case Fan, FDB Bearing, 350-2200 RPM, White
Fractal Design Momentum 12 12cm PWM Case Fan, FDB Bearing, 350-2200 RPM, White

Fractal Design Momentum 12 12cm PWM Case Fan, FDB Bearing, 350-2200 RPM, White

£25.18 inc. VAT

Product details

Description

Specification

  • Type: 12cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Screws
  • #Hide#LED Lighting: No
  • Colour: White
  • LED Lighting: –
  • Material: Stiff Liquid Crystal Polymer (LCP) blades
  • Weight: 163 g
  • Fan Dimensions: 120 x 120 x 25 mm
  • Rotation Speed: 350 – 2200 RPM
  • Fan Bearing: Fluid Dynamic Bearing
  • Air Flow: 67.34 CFM
  • Noise level: 31.3 dbA
    Zero-RPM capability Yes (0%-10% PWM)
  • Power: Input Power: 2.4 W
    Max Input Current: 0.2 A
    Input Voltage: 12V
    Starting Voltage: 7V
  • Additional Features: 7 blades
    Large diameter fan blades
    Updated swept blade design
    Rubber bushings around all screw points
    Cable Type: 4-pin PWM daisy-chain cable (Male -> Female)
    Cable Length: 135 mm + 35 mm
    Static pressure: 2.51 mmH2O
  • MTBF: “90,000 hours”
  • Package Contents: 1 x Momentum 12
    1 x Splitter cable
    4 x Fan screws
  • Package Type: Retail
  • Package Weight: 0.2580 kg
  • Warranty: 2 Years
  • Colour: White

Sorry, we sold out of this product. Please check back again soon!

SKU: CF120-FRMOM12WH Categories: , Tag:

Have Any Questions?

Our experts are ready to help you!

Chat now

Description

Momentum is a fan series which fuses premium materials with high standards of engineering to minimize noise while maximizing cooling efficiency.

It features a swept blade design, vibration-reducing rubber bushings and true fluid dynamic bearing technology to ensure quieter operation. Momentum blades are constructed from Liquid Crystal Polymer (LCP), which reduces the required distance between the fan’s rotor and frame to further improve efficiency.


  • Highly stiff Liquid Crystal Polymer (LCP) blades, allowing smaller gaps between rotor and frame
  • Updated swept blade design improving performance per noise, especially at higher speeds
  • True FDB bearing with inner herringbone structure provides optimal noise performance as well as increased lifetime
  • Large-range PWM control allows the fan to both spins quietly at lower loads while providing great headroom during high loads
  • The fans can be turned off entirely (zero-RPM) for total silent operation.
  • Rubber bushings around all screw points to reduce vibration between fan and case
  • All fans feature short daisy chaning cables, long enough to connect to an adjacent fan
  • Each fan box also includes a sleeved extension cord for easy cable management, only one extension cord per fan group is needed.




Powerful blades
Crafted with strong Liquid Crystal Polymer (LCP) blades which allow improved efficiency through precision engineering




Quiet performance
Keep your system quietly cool with a swept blade design which generates airflow at lower noise levels, especially at higher rotational speeds





Smooth operation
Enjoy lasting, optimized noise performance with a true Fluid Dynamic Bearing (FDB) featuring an inner herringbone structure




Controllable power
Optimize the performance and noise levels of your system with a generous range of PWM control, including Zero RPM mode





Easy connectivity
Daisy chain your fans together smoothly and easily with short integrated flat cables and one extension cable per fan cluster





Clean design
Enjoy a sleek, sophisticated finish with a minimalistic, unified design expression crafted with high-quality material





Low vibration
Run your fans with less vibration between the fans and case thanks to integrated rubber bushings around screw points




Additional information

Weight 0.2580 kg
