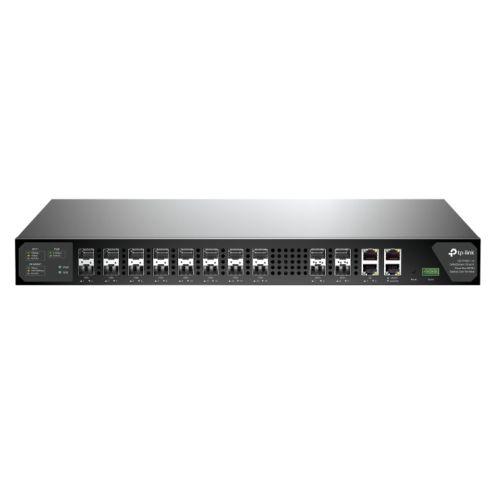

TP-LINK Aginet (DS-P7001-16) DeltaStream 16-port Pizza-box GPON Optical Line Terminal, 16 GPON Ports, Dual Redundant PSUs, Centralized Management
TP-LINK Aginet (DS-P7001-16) DeltaStream 16-port Pizza-box GPON Optical Line Terminal, 16 GPON Ports, Dual Redundant PSUs, Centralized Management

TP-LINK Aginet (DS-P7001-16) DeltaStream 16-port Pizza-box GPON Optical Line Terminal, 16 GPON Ports, Dual Redundant PSUs, Centralized Management

£2,381.88 inc. VAT

Product details

Description

Specification

  • Interface(s): 16 x GPON Ports
    4 x 10 Gbps SFP+ Uplink Ports
    2 x 10/100/1000 Mbps RJ45 Uplink Ports
    1 x RJ45 Console Port
    1 x RJ45 MGMT Port
    1 x Alarm Port
  • Button: Reset Button
  • Power Supply: “Dual Power Supply: 2 AC, 2DC or AC + DC
    AC: 100V~240V, 50/60 Hz
    DC: -38.4V~-72V
    Power Consumption: Max. 103W”
  • Data Rates: Downstream: 2.5 Gbps
    Upstream: 1.25 Gbps
  • Wavelength: Tx: 1490 nm
    Rx: 1310 nm
  • Fiber Type: 9/125um SMF (Single Mode Fiber)
  • Distance: 60 km
  • Max. Splitting Ratio: 1:128
  • DHCP: DHCP Server
    DHCP Relay
  • Multi-Service: Multi-Service Traffic Identify and Rate Limit
  • QoS: IEEE 802.1p/DSCP QoS
    Voice VLAN
    Auto VoIP
  • Routing: Static Routing
  • Mulitcast: IGMP Snooping
    MLD Snooping
  • Security: ACL
    802.1x Authentication
    ARP Inspection
    IP Source Guard

    ONU Security:
    Rouge ONU Detection and Isolation
    Uplink and Downlink Data Encryption

  • Management: “OMCI:
    Standard OMCI Management Supported

    Centralized Management:
    Large-Scale Devices Management
    OLT Batch Configure, Upgrade, Reboot
    Multi-Site Management
    Intelligent Network Monitoring
    Real-time Network Overview”

  • Dimensions: 440 x 440 x 44 mm
  • Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
    Storage Temperature: -40°C~70°C(-40°F~158°F)
  • Package Contents: “OLT Device
    Power Cord and Console Cable
    Installation Guide
    Mouting Brackets, Screws and Rubber Feet”
  • Package Weight: 9.9200 kg
  • Warranty: 3 Years

Sorry, we sold out of this product. Please check back again soon!

SKU: TER-16TPDELTAGPON Category: Tag:

Have Any Questions?

Our experts are ready to help you!

Chat now

Description

DeltaStream 16-port Pizza-box GPON Optical Line Terminal

  • 16 GPON Ports: Supports 1:128 splitting ratio for every port—up to 2048 ONTs by one device.
  • High-Speed Uplink Ports: Provides 4× 10GE SFP+ ports and 2× gigabit uplink ports.
  • Dual Redundant Power Supplies: Carrier-class reliability with dual hot-swap AC, DC, or mixed power input.
  • Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
  • Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
  • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.

Additional information

Weight 9.9200 kg
